LOCATION：HOME > PRODUCT CENTER > Switches > Unmanaged Switches > SF1016D

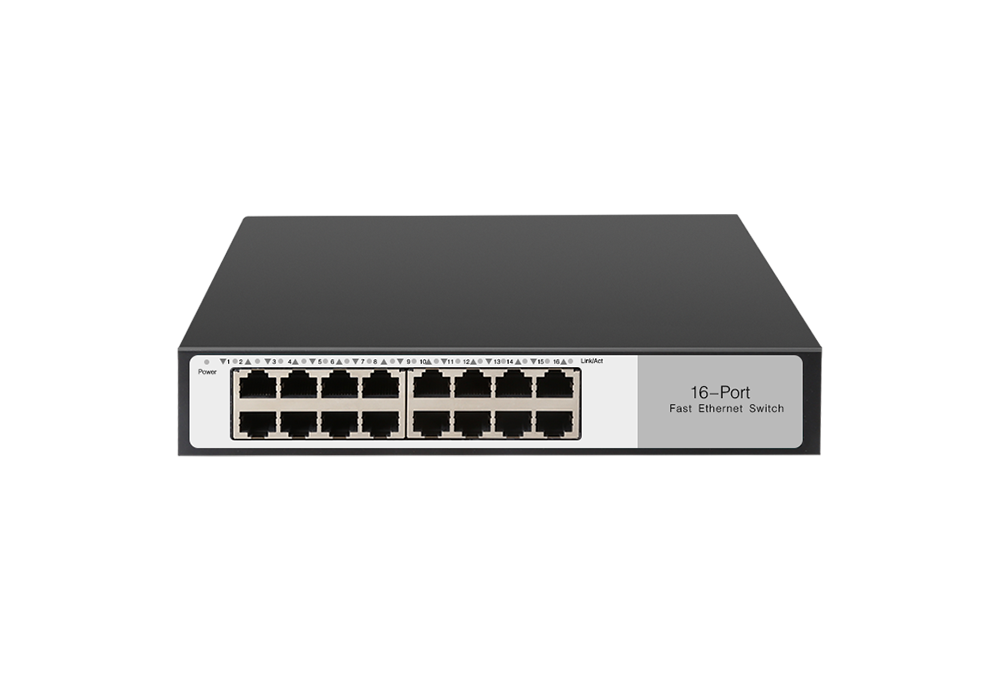

SF1016D

SF1016D is a 16-port fast Ethernet switch developed by TG, offering 16 10/100 Mbps RJ45 ports. Equipped with large packet buffer, it also ensures smooth streaming even when 15 HD IP cameras are working simultaneously. SF1016D is a perfect choice for small and medium-sized IP surveillance projects and enterprises to have network.
MORE+
Share：
■  Comply with IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3x,IEEE802.3az Ethernet standard;
■  16 10/100Mbps adaptive RJ45 ports, support auto flip function (AutoMDI/MDIX);
■  Support IEEE802.3x full-duplex flow control function and half-duplex back pressure flow control function;
■  Support IEEE802.3az Energy-saving Ethernet (EEE) technology;
■  4K automatic learning and automatic aging MAC address;
■  Easy-to-understand LEDs indicate the connection and data transmission status of the port;
■  External power supply, exquisite iron shell structure design, suitable for desktop installation.
Product Information
Product Model SF1016D
Hardware specifications
Fixed Ports 16*10/100 Base-TX ports
Transmission Media Recommended: CAT5/5e UTP or better
Switching Capacity 3.2G
Forwarding Rate 10M:14880pps/port
100M:148809pps/port
Temperature Operating temperature: (0 - 40)°C
Storage temperature: (-40 - 70)°C
Humidity Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) % RH, non-condensing
Dimensions(L*W*H) 220*160*40mm
Power AC 100~240V,50Hz~60Hz,5V/2A
Power consumption 4.5W
Weight <1.5Kg
Lightning protection 2KV
MAC address table 4K
LED Indicator Power,Link/Act

Software specifications
Forwarding mode Store-and-forward
MAC address learning Auto learning & auto aging

Product Information Detailed information
SF1016D 16*10/100 Base-TX ports
