■ Strong "core"
The international mainstream industrial-grade high-performance switching chip is adopted, and all components are in accordance with industrial-grade standards to ensure that the product works stably in various harsh environments.

■ Hardware protection
The working temperature of -40℃-80℃, whether it is severe cold or scorching heat, meets the application requirements of harsh industrial environments.
It meets the EMC4 standard, IP40 or higher protection level, and has strong dust-proof, anti-seismic, anti-interference and anti-corrosion capabilities to ensure stable operation under various harsh working conditions.

■ Convenient design
Using fanless heat conduction design and holeless heat dissipation technology, the equipment has an average failure time of more than 30 years, which is more durable
The uplink port adopts a gigabit photoelectric hybrid design, and the optical port uses an SFP interface, which is convenient for common optical fiber port applications.

■ Industry business characteristics
Supports autonomous ring network redundancy technology, the failure recovery time is less than 20ms, greatly enhances the equipment and network reliability, eliminates single points of failure, and avoids communication terminals.
The primary and secondary loop protection can effectively prevent the entire network loop caused by wrong construction and artificial connection.

■ Software security protection strategy
It supports flexible binding of MAC, IP, VLAN, and PORT in any combination, effectively preventing illegal users from accessing and accessing the network.

■ Various management methods
Support CLI command line configuration mode in Telnet and Console.
Support Web, SNMP configuration mode, more convenient realization of equipment network management.

Product Information

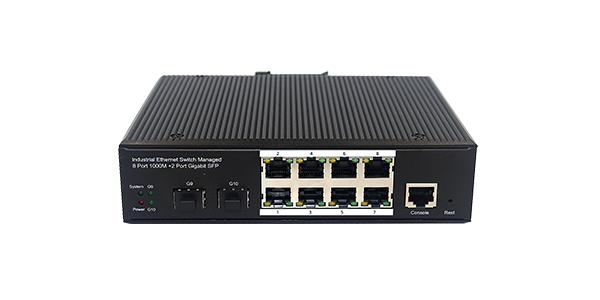

Product Model	ISG2510
Hardware specifications
Ports	8*10/100/1000 Base-T ports 2* 1000 Base-X SFP ports.
Consloe	1
Operating temperature	-40~80°C
Storage temperature	-40~85°C
Relative humidity	5%～95% No condensation
Power characteristics	Output : DC 48-57V Support dual power supply redundancy Support built-in overcurrent 4.0A protection Support reverse connection protection
Packet buffer	4.1M
MAC Address	16K
Whole machine power consumption	<10W(No load)
Network protocol	IEEE802.3 10BASE-T.IEEE802.3i 10Base-T.IEEE802.3u.100Base-TX/FX.IEEE802.3ab 1000Base-T.IEEE802.3z 1000Base-X.IEEE802.3x.IEEE802.af.IEEE802.at.
Industry Standard	EMI :FCC Part 15 Subpart B Class A，EN 55022 Class A EMS :IEC(EN)61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT):power cable:±4kV.data cable : ±2kV IEC(EN)61000-4-5(Surge):power cable:±4kV CM/±2kV DM . data cable:±2kV IEC(EN)61000-4-6(Radio frequency conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8 Shock:IEC 60068-2-27 Freefall:IEC 60068-2-32 Vibration:IEC 60068-2-6
Mechanical properties	Housing: metal Installation: DIN rail type, wall-mounted installation Cooling method: natural cooling, no fan
Size	179(L)*134(W)*46(H)mm
Protection level	IP40
Mean time between failures	300,000 hours

Software specifications
Forwarding mode	Store-and-forward
Protocol and Standards	IEEE 802.3, 10 Base-T Ethernet.
	IEEE 802.3u,100 BASE-TX.
	IEEE 802.3ab,1000 BASE-T.
	IEEE 802.3z,1000 BASE-X.
	IEEE 802.3az,EEE(Energy Efficient Ethernet).
MAC Address	16K MAC addresses,Support auto-update, two-way learning
VLAN	Based Port VLAN
	Up to 4096 VLAN
	VLANs based on IEEE 802.1q
Spanning Tree	STP Spanning Tree Protocol
	RSTP Rapid Spanning Tree Protocol
Port Aggregation	8 aggregation groups,each containing up to 8 ports.
Port Mirroring	Send and receive two-way port mirroring
Ring network protocol	support
	Support ring protection
	Support for Downward Multiring
Port Isolation Port stream control	Downlink ports are isolated from each other and can communicate with uplink
	Half duplex based on backpressure control
	Full duplex based on PAUSE frames
Port speed limit	Port Based Input / Output Bandwidth Management
Multicast control	IGMPv1/2/3 and MLDv1/2 Snooping
IPv6	Pingv6
DHCP	DHCP Snooping
Storm suppression	Storm suppression for unknown Unicast, multicast, multicast, broadcast type
	Storm suppression based on bandwidth regulation and storm filtering
Security features	Based on Vlan, MAC binding
	ACL Based on IP and MAC
	Security limit on the number of MAC addresses based on ports
QOS	802.1 P Port Queue Priority Algorithm
	Cos/Tos,QOS tags
	WRR (Weighted Round Robin)
Line order	Auto-MDIX, Automatic identification of straight and cross lines
Ping Detection	IPv4/IPv6 Ping Detection
Modalities for consultation	Port automatic negotiation
System maintenance	Detection of connectivity
	Upgrade package upload
	See System log
	WEB factory configuration restored
Management	WEB-based interface management
	Telnet
	CLI Management (Command Line Interface)
	SNMP

Product Information	Detailed information
ISG2510	8*10/100/1000 Base-T ports, 2* 1000 Base-X SFP ports.
